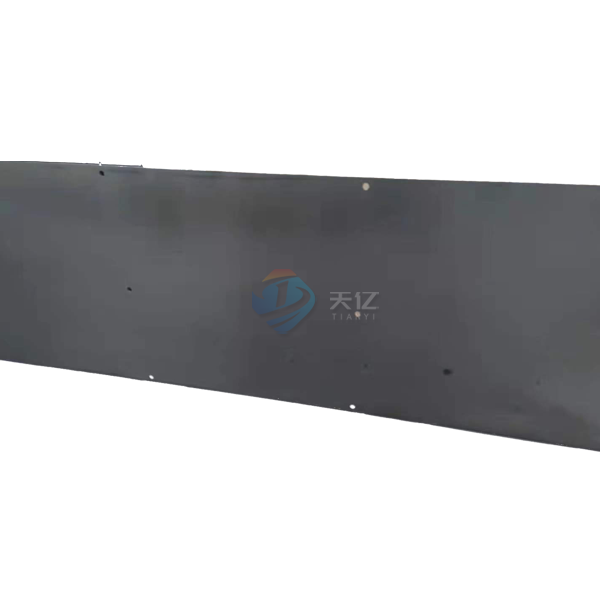

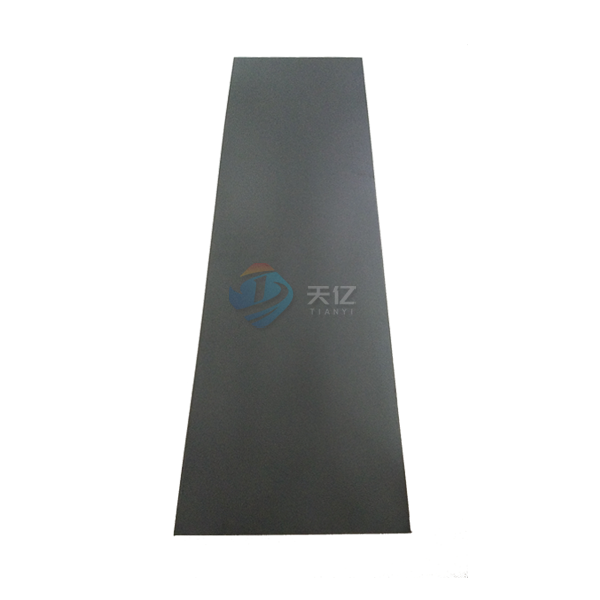

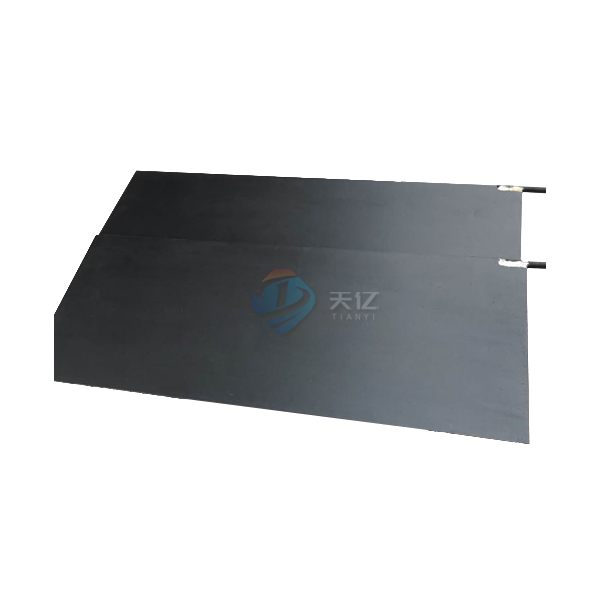

Titanium Anode For PCB Electroplating

Product Introduction

Welcome to the future of electroplating with our Titanium Anode for PCB Electroplating! At Shaanxi Tianyi New Material Titanium Anode Technology Co., Ltd., we are proud to offer high-performance MMO (Mixed Metal Oxide) coated titanium anodes specifically designed for printed circuit board (PCB) electroplating. Our anodes provide exceptional durability, efficiency, and reliability in various electroplating processes, ensuring that your PCBs are manufactured to the highest standards.

Product Specifications

Product Composition and Design

Our Titanium Anode for PCB Electroplating for PCB Electroplating are engineered with precision. They feature a robust titanium substrate coated with advanced MMO materials, providing a superior balance between conductivity and corrosion resistance. This design allows for consistent performance over extended periods, making them ideal for high-demand electroplating applications.

Product Advantages

1. High Corrosion Resistance: Our titanium anodes withstand harsh chemical environments, ensuring longevity and reduced maintenance.
2. Improved Efficiency: The unique coating enhances current distribution, promoting uniform plating on PCBs.
3. Customization Options: We offer tailored solutions to meet specific client requirements, ensuring the perfect fit for your production processes.
4. Environmental Compliance: Our products are developed with sustainability in mind, contributing to eco-friendly electroplating practices.

Technical Features

• Superior Conductivity: Enhanced performance during electroplating leads to faster production cycles and reduced energy consumption.
• Temperature Resilience: Designed to function optimally across a wide temperature range, our anodes ensure stable performance.
• Flexible Applications: Suitable for various electroplating setups, from small-scale operations to large manufacturing plants.

Product Application

Our Titanium Anode for PCB Electroplating are widely used in the electronics industry for:

Electronics Industry: Precision is essential in electronics, and electroplating anodes help achieve flawless coatings on delicate components, enhancing their durability and performance.

Automotive Industry: Electroplating anodes are key to producing durable, corrosion-resistant coatings and polished chrome finishes, contributing to both the functionality and aesthetics of automotive parts.

Aerospace Industry: Aerospace applications require components to withstand extreme conditions. Electroplating anodes are crucial for producing parts that meet the strict standards for quality and durability in this sector.

Jewelry and Decorative Arts: Electroplating anodes enable the creation of beautiful, long-lasting finishes on jewelry and decorative items, ensuring their quality and visual appeal.

Medical Devices: For medical devices, electroplating provides corrosion-resistant and hygienic surfaces, ensuring the safety, reliability, and longevity of critical medical instruments.

Oil and Gas Industry: Electroplating anodes are essential for applying protective coatings that enhance the corrosion resistance and longevity of equipment used in challenging oil and gas environments.

Renewable Energy: In renewable energy systems, electroplated components benefit from enhanced durability and efficiency, contributing to the reliability of sustainable energy solutions.

Agriculture: Electroplating adds wear and corrosion resistance to components used in agricultural machinery, improving their durability under tough working conditions.

Aviation Industry: Precision coatings achieved with electroplating anodes are essential for manufacturing reliable aircraft components that meet stringent aviation standards.

Textile Industry: Electroplating anodes provide durable coatings for textile machinery parts, boosting their performance and longevity in demanding operational settings.

Telecommunications: In telecommunications, electroplated components enable dependable connections and efficient signal transmission, ensuring network reliability.

General Manufacturing: Electroplating anodes support numerous manufacturing processes by enhancing the quality and lifespan of items, from fasteners to industrial equipment, across various sectors.

Be used in a wide range of industries.



​

Water treatment

​

Cathodic protection of oil tank bottom plate

​

Aluminum foil manufacturing industry

​

Copper foil manufacturing industry

​

Energy industry

​

Chemical industry

​

Medical equipment

​

Electronic plating

​

Marine engineering

Our Workshop













Product Production Process

We utilize advanced manufacturing techniques, including:

Material Selection
The process begins with the careful selection of high-quality titanium as the substrate. Titanium is favored for its exceptional resistance to corrosion and its mechanical strength, which are essential for the electroplating processes used in PCB manufacturing.

Substrate Shaping
The titanium substrate is then cut into specific shapes and sizes suitable for PCB electroplating applications. This may involve laser cutting or CNC machining to achieve precise dimensions that meet customer requirements.

Surface Preparation
To enhance coating adhesion, the titanium surfaces undergo thorough cleaning. This can include chemical cleaning and abrasive blasting to eliminate any surface contaminants, such as oils, dirt, or oxides, ensuring a clean surface for the subsequent coating.

Coating Application
A conductive coating, typically a mixed metal oxide (MMO) layer, is applied to the titanium substrate. This coating enhances the anode's performance and longevity. The application methods can vary, including thermal spraying, chemical vapor deposition (CVD), or electrochemical deposition.

Curing Process
After the coating is applied, the anodes are subjected to a curing process. This involves heating the anodes to promote bonding between the titanium substrate and the coating, which improves the durability and efficiency of the anode.

Quality Control Testing
Throughout the production, stringent quality control tests are conducted. These tests assess the coating thickness, adhesion strength, and electrical conductivity to ensure compliance with industry standards and performance specifications.

Dimensional Inspection
Each titanium anode is carefully inspected to verify that it meets the specified dimensions. This step is crucial to ensure uniformity and compatibility with PCB electroplating equipment.

Final Surface Treatment
A final surface treatment may be performed to optimize the electroplating characteristics of the titanium anodes. This treatment can involve additional cleaning or passivation to enhance surface performance.

Packaging
Once quality control is completed, the finished anodes are packaged using protective materials to prevent damage during shipping. Proper packaging ensures that the anodes arrive at their destination in optimal condition.

Documentation
Each shipment is accompanied by documentation, including specifications, handling instructions, and operational guidelines. This information is essential for customers to use the titanium anodes effectively in PCB electroplating applications.

Logistics and Shipping
The completed titanium anodes are dispatched to customers through reliable shipping methods. Tracking information is provided to ensure transparency and timely delivery.

Technical Support
Manufacturers often provide ongoing technical support to assist customers with installation, operational queries, and troubleshooting related to the titanium anodes used in PCB electroplating systems. This support is vital for ensuring maximum performance and customer satisfaction.

By following this detailed production process, titanium anodes designed for PCB electroplating are produced with high standards of quality, ensuring their effectiveness and reliability in enhancing the electroplating process used in printed circuit board manufacturing.

Quality Inspection

Our commitment to quality is unwavering. Each Titanium Anode is subjected to:

• Raw Material Inspection: Only the highest quality titanium and coating materials are selected.
• End-of-Line Testing: Final products are thoroughly tested for performance metrics before packaging.

Packaging Method

To ensure the safe delivery of our Titanium Anode for PCB Electroplating, we employ:

• Custom Packaging Solutions: Each anode is carefully packaged to prevent damage during transit.
• Eco-Friendly Materials: We prioritize sustainable packaging options to reduce environmental impact.

Our Certificates

Our Team

OEM Service

We offer comprehensive OEM services, providing customized products tailored to your specific needs. Our flexible manufacturing processes allow for quick turnaround times and the ability to meet unique design specifications. Our commitment to customization is evident in our ability to work with you to develop anode rods that are not only tailored to your market's needs but also designed to withstand the rigors of industrial use.

FAQ

Q: How long do titanium anodes last?
A: The lifespan of our titanium anodes varies based on usage conditions but generally exceeds several years with proper maintenance.

Q: Can I order custom sizes?
A: Yes, we offer customization to fit your specific requirements. Please contact us for more details.

Q: What is the lead time for orders?
A: Standard lead times are typically 4-6 weeks, depending on the size and complexity of your order.

Contact Us

For more information about our Titanium Anode for PCB Electroplating, or to discuss your specific needs, please reach out to us at [info@di-nol.com]. Let us help you enhance your electroplating processes with our innovative solutions!
