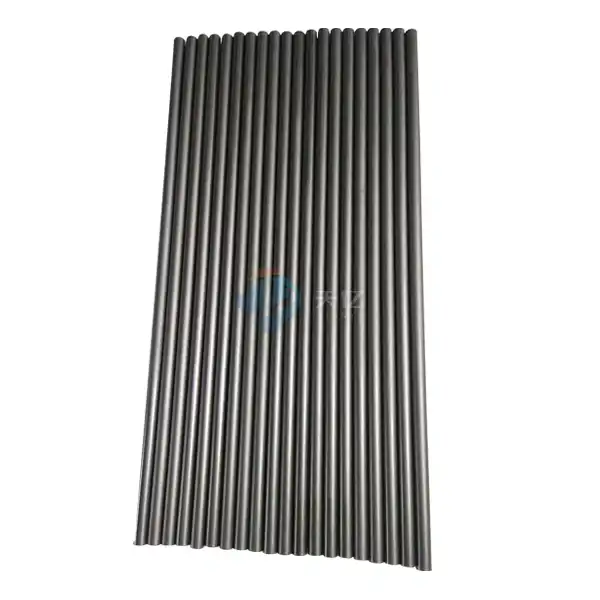

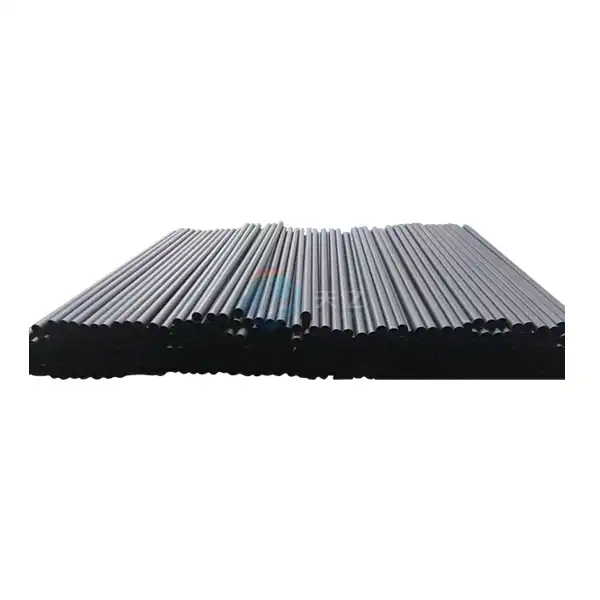

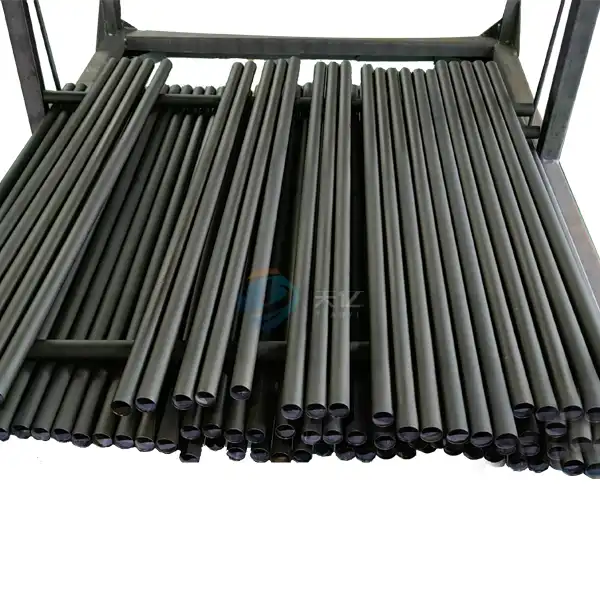

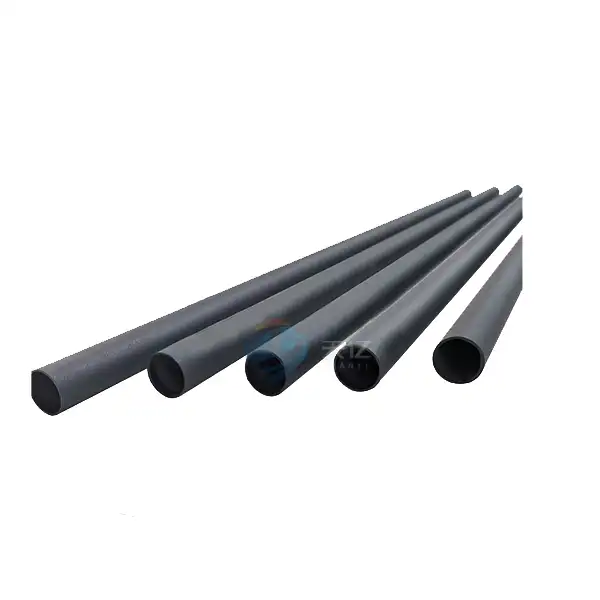

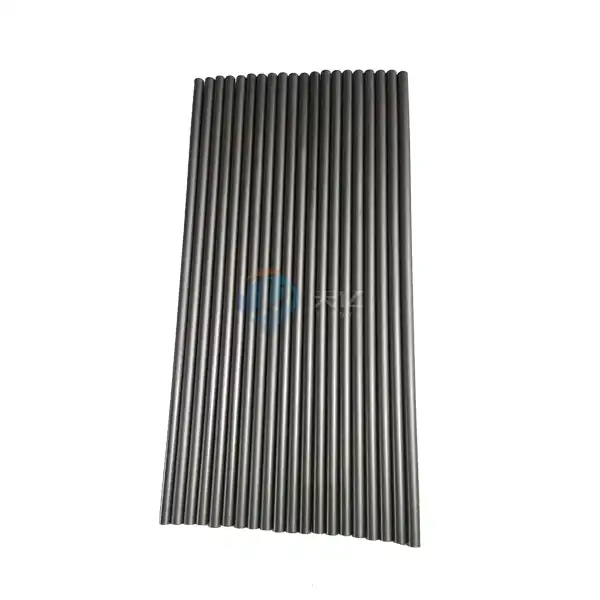

Tubular Anode

Welcome to the forefront of electrochemical technology! At Shaanxi Tianyi New Material Titanium Anode Technology Co., Ltd., we take pride in offering our state-of-the-art Tubular Anode. Designed for various applications, these high-performance anodes are engineered to enhance efficiency and durability in electrochemical processes. Our products are particularly effective in environments where reliability and performance are critical, such as in water treatment, metal processing, and industrial electroplating.

Product Specifications

Outer diameter (mm)/customizable	Length (mm)ke / can be customized	Output current (A)	Expected life (years)
19	1200	7.2	20—50
25	500	4	20—50
25	1000	8	20—50
25	1200	10	20—50
25	1500	12	20—50
32	1200	12	20—50

​

​

​

Product Composition and Design

The Tubular Anode features a unique design that maximizes surface area, enhancing electrochemical reactions. Constructed from high-quality titanium and coated with mixed metal oxides, these anodes ensure optimal performance and longevity. The tubular shape facilitates uniform current distribution, reducing hotspots and prolonging service life.

Product Advantages

High Durability: Our products are resistant to corrosion and wear, ensuring a longer service life.

Efficiency: Designed for optimal performance, these anodes provide consistent output across various applications.

Customizable: Tailored dimensions and coatings are available to meet specific client needs.

Eco-Friendly: Our manufacturing processes emphasize sustainability and environmental responsibility.

Technical Features

Corrosion Resistance: The titanium substrate and MMO coating provide exceptional resistance to aggressive environments.

Low Maintenance: Minimal upkeep is required, thanks to the robust design and material selection.

Versatility: Suitable for a range of applications, including water treatment and metal processing.

Product Application

MMO tubular anode

Application areas: Suitable for many environments, such as soil, fresh water, saline water and seawater, and it is light in weight, has a long service life and is cost-effective.

1. MMO tubular anode is also called titanium tube anode, MMO anode titanium tube, or precious metal oxide (MMO) titanium anode tube. It is a metal oxide with electrocatalytic activity formed by coating, sintering and other processes on the titanium tube substrate. Suitable for many environments, such as soil, fresh water, saline water and seawater, and it is light in weight, has a long service life and is cost-effective;

2. In the application of impressed current cathodic protection, as the MMO auxiliary anode of the cathodic protection system, it constitutes a set of cathodic protection system together with a constant potential instrument, test pile, reference electrode, etc.;

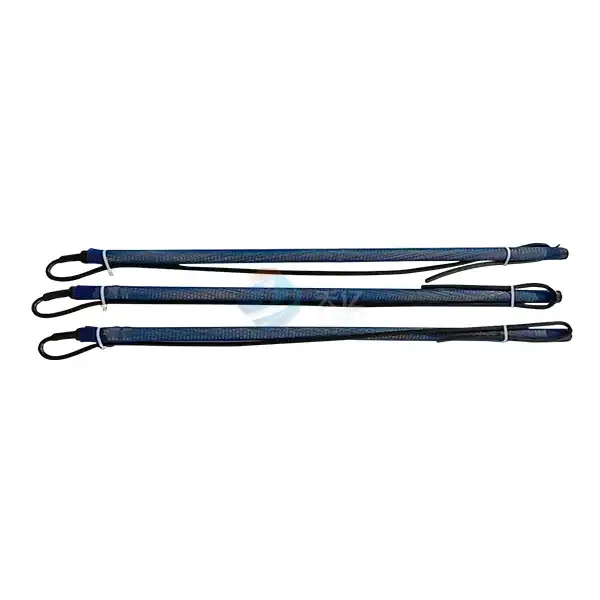

3. In the process of using it as an auxiliary anode for deep well anode or bridge cathodic protection, weld the connecting cable to form a 2/3 anode string, which is simple to install and convenient to construct;

4. The service life and output current required by different requirements can be designed and produced by adjusting the coating ratio. MMO tubular anode coating type, thickness and anode size can be customized according to the user, depending on the required current density, medium environment and design life.

Our Workshop

Product Production Process

Our tubular anodes undergo a rigorous production process:

Titanium Tube Selection
Titanium tubes are selected for their durability and corrosion resistance, particularly in harsh environments. Quality control checks ensure that each tube meets the industry standards for cathodic protection applications.

Surface Preparation
The titanium tubes undergo a surface treatment process, which includes acid etching or sandblasting. This step removes any impurities and roughens the surface, enhancing the adhesion of the coating applied in later stages.

Application of Coating
A mixed metal oxide (MMO) or platinum coating is applied to the prepared titanium surface. This coating serves as a catalyst, boosting the anode's conductivity and extending its life. The application may involve dipping the tubes in a solution or thermal spraying, followed by heat treatment to secure the coating.

Connection Assembly
Each tubular anode is equipped with high-quality connectors to ensure strong electrical conductivity. Wires and connections are attached securely to maintain performance and to handle high current densities in cathodic protection systems.

Insulation and Sealing
Insulation materials are applied at the connection points to prevent unintended current loss. End caps or seals protect the tubular anode from moisture ingress, ensuring long-term reliability in submerged or underground environments.

Conductivity and Performance Testing
The coated anodes undergo rigorous testing for electrical conductivity, coating uniformity, and adhesion strength. These tests verify that the anode will deliver consistent protection in corrosive environments.

String Assembly (If Required)
In some cases, multiple tubular anodes are connected into strings for large-scale applications. These strings are assembled with flexible yet durable wiring and tested for uniform current distribution across all anodes.

Final Quality Inspection
A thorough quality check is conducted on each anode to ensure it meets performance and durability standards. Tests for mechanical strength, electrical conductivity, and corrosion resistance ensure reliability.

Packaging and Documentation
The tubular anodes are carefully packaged to prevent damage during transit. Each package includes documentation with installation guidelines, operational instructions, and maintenance recommendations, ensuring optimal performance in the field.

Quality Inspection

Every product is subjected to strict quality inspections, including:

Raw material testing.

Coating thickness verification.

Electrical performance testing to ensure compliance with industry standards.

Packaging Method

We employ custom packaging solutions to ensure the safe transport of our products, including:

Protective Wrapping: To prevent damage during shipping.

Secure Crates: For bulk orders, providing extra safety.

​

​

​



Our Certificates

Our Team

​

​



OEM Service

Shaanxi Tianyi offers comprehensive OEM services, allowing clients to customize product specifications to align with their unique needs. Our team collaborates closely with partners to deliver tailor-made solutions that guarantee optimal performance.

FAQ

Q: What is the lifespan of the product?
A: Depending on the application, our products can last between 5 to 10 years.

Q: Can the products be customized?
A: Yes, we offer customization options for length, diameter, and coating types.

Q: What industries benefit from using it?
A: Industries such as water treatment, electroplating, and hydrometallurgy utilize our products.

Q: How do you ensure quality?
A: We conduct rigorous quality checks at each production stage and source materials from reputable suppliers.
