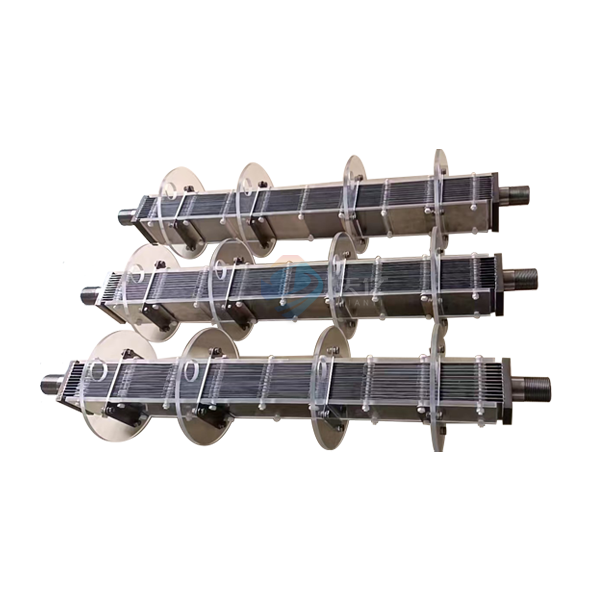

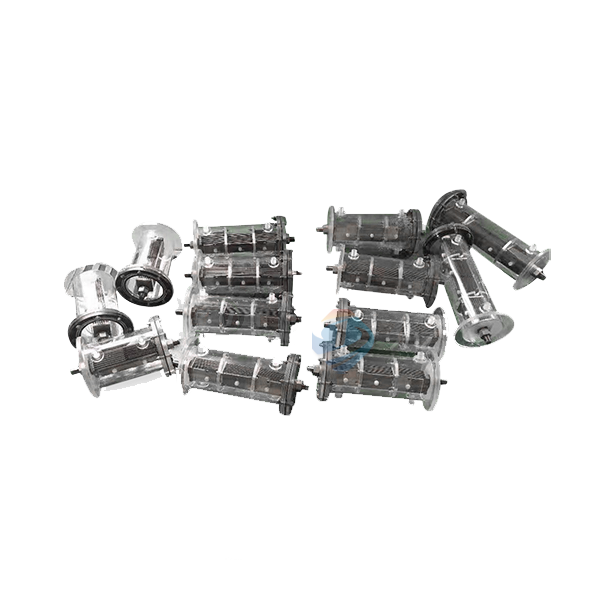

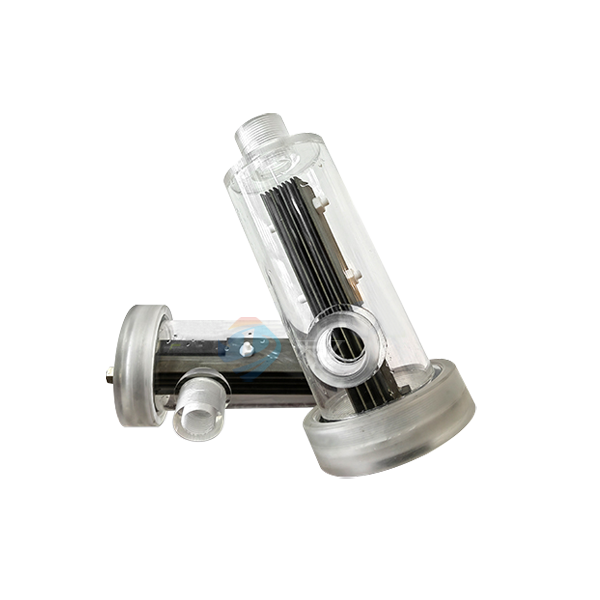

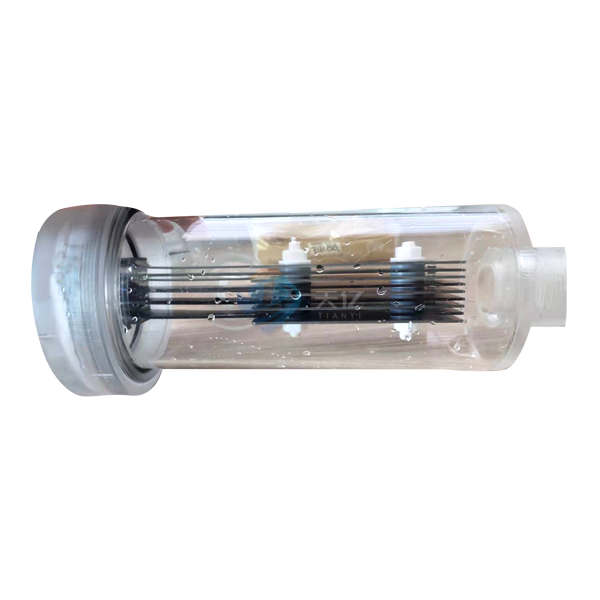

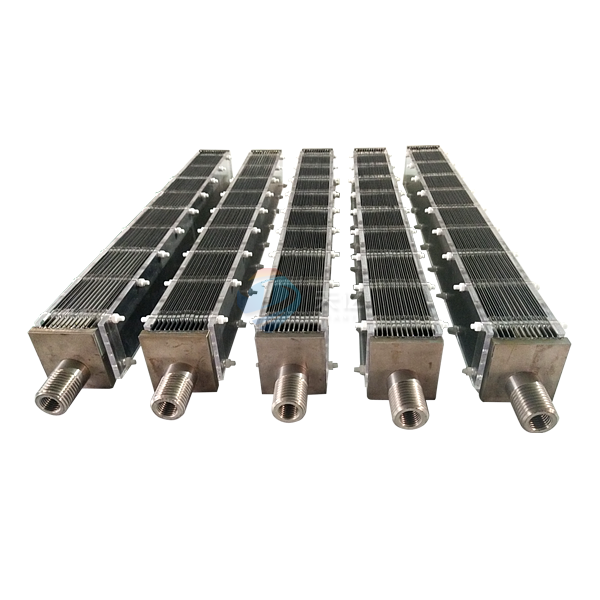

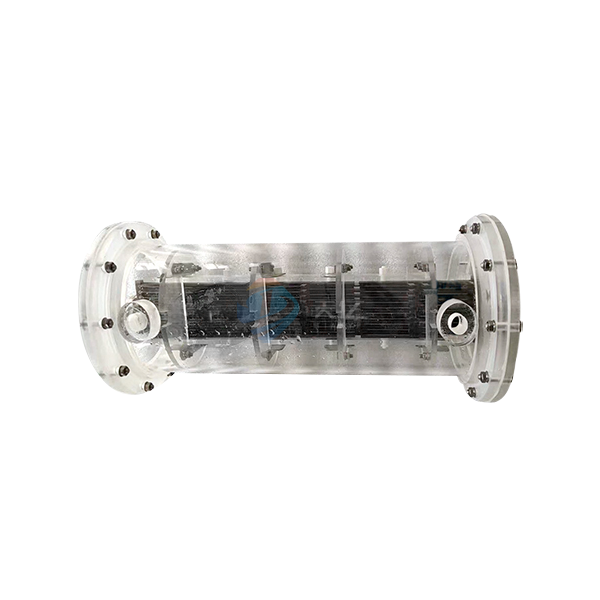

Diaphragmless electrolyzer
Corrosion resistance
Tailored precision, customizable in size, dimensions and capacity

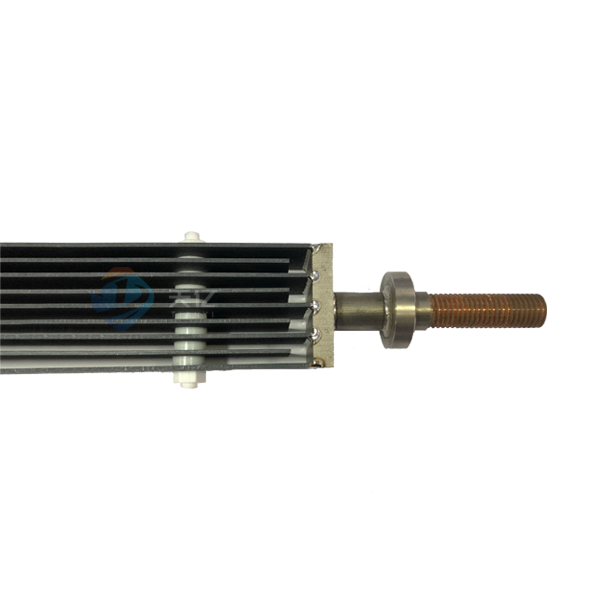

Integrated titanium welding and flange technology effectively prevents high pressure buildup and ensures strong welds
Ruthenium and iridium oxide nano-coating Coating can extend the service life of the electrolyzer to five years
- Product Description
Diaphragmless Electrolyzer Manufacturer
TianYI's state-of-the-art Diaphragmless Electrolyzer sets a new standard in the industry, offering unparalleled performance, efficiency, and reliability. Our cutting-edge technology ensures the production of ultra-high purity hydrogen, chlorine, and other gases while significantly reducing energy consumption and maintenance requirements. With TianYI, you can streamline your production process and achieve superior results.
Product Show
| TY-WL50B | TY-WL100B | TY-WL200B | TY-WL300B | TY-WL500B | TYE-WL750B | TY-WL1000B | TY-WL1500B | TY-WL2000B | |
| Effective chlorine production | 50g/h | 100g/h | 200g/h | 300g/h | 500g/h | 750g/h | 1000g/h | 1500g/h | 2000g/h |
| flange outer diameter | 135mm | 210mm | 200mm | 210mm | 270mm | 270mmm | 270mm | 360mm | 360mm |
| Shell diameter | 100mm | 150mm | 140mm | 150mm | 200mm | 200mm | 200mm | 270mm | 270mm |
| Total length of electrolytic cell | 310mm | 450mm | 450mm | 550mm | 820mm | 820mm | 1020mm | 980mm | 1200mm |
| Water inlet and outlet | G1 | G1/2 | G1/2 | G1/2 | G3/4 | G3/4 | G3/4 | G1 | G1 |
| internal thread | External thread | External thread | External thread | internal thread | internal thread | internal thread | internal thread | internal thread | |
| electric current | 60A±20% | 60A±20% | 84A±20% | 84A±20% | 120A | 144A±20% | 156A±20% | 460A±20% | 460A±20% |
| voltage | ≤5V | ≤15V | ≤15V | ≤20V | ≤30V | ≤30V | ≤40V | ≤35V | ≤40V |
| Electrolytic cell pressure | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa | ≤0.2Mpa |
| Tank material solutions | PMMA/PVC | PMMA/PVC | PMMA/PVC | PMMA/PVC | PMMA/PVC | PMMA/PVC | PMMA/PVC | PMMA/PVC | PMMA/PVC |
| flow | 6L/h--8L/h | 12L/h--20L/h | 25L/h--35L/h | 36L/h--50L/h | 65L/h--85L/h | 90L/h--130L/h | 125L/h--170L/h | 185L/h--260L/h | 250L/h--400L/h |
| Solution for | 2%-5% saline | 2%-5% saline | 2%-5% saline | 2%-5% saline | 2%-5% saline | 2%-5% saline | 2%-5% saline | 2%-5% saline | 2%-5% saline |
| water inlet temperature | 5-15℃ | 5-15℃ | 5-15℃ | 5-15℃ | 5-15℃ | 5-15℃ | 5-15℃ | 5-15℃ | 5-15℃ |
| Pickling hydrochloric acid concentration | 15-18% | 15-18% | 15-18% | 15-18% | 15-18% | 15-18% | 15-18% | 15-18% | 15-18% |
| contaminant release | contaminant release | contaminant release | contaminant release | contaminant release | contaminant release | contaminant release | contaminant release | contaminant release |
  |  |  |
 |  |  |
Product Composition and Design
The Diaphragmless Electrolyzer features a robust construction that includes high-performance electrodes made from durable materials, ensuring longevity and stability during operation. Its design eliminates the need for a diaphragm, which reduces resistance and enhances the overall efficiency of the electrolysis process. The modular design allows for easy maintenance and scalability, making it ideal for various industrial applications.
Product Advantages
Increased Efficiency: By removing the diaphragm, the electrolyzer minimizes energy loss and maximizes output.
Compact Design: The streamlined structure requires less space, making it suitable for facilities with limited room.
Cost-Effective: Reduced maintenance and operational costs contribute to a lower total cost of ownership.
Versatility: Suitable for diverse applications, from water treatment to industrial electrolysis.
Technical Features
Advanced Control Systems: The electrolyzer is equipped with cutting-edge control technology, allowing for precise monitoring and adjustments.
High Durability: Constructed with corrosion-resistant materials, ensuring a long lifespan even in harsh environments.
Safety Features: Includes built-in safety mechanisms to protect against overcurrent and thermal overload.
Product Application
The Diaphragmless Electrolyzer is perfect for:
1. Industrial Cooling Water Treatment
2.Marine and Cruise Water Disinfection
3.Rural Water Treatment Solutions
4.Urban Water Treatment Solutions
5.Wastewater Treatment Solutions
6.Food and Beverage Safety through Disinfection
7.Pool Water Disinfection
Be used in a wide range of industries.
Water treatment
Cathodic protection of oil tank bottom plate
Aluminum foil manufacturing industry
Copper foil manufacturing industry
Energy industry
Chemical industry
Medical equipment
Electronic plating
Marine engineering
Our Workshop
Product Production Process
Material Selection: We use only the highest quality materials to ensure durability and performance.
Precision Manufacturing: Each component is meticulously crafted to exact specifications.
Assembly: Skilled technicians assemble the electrolyzer with precision.
Testing: Rigorous testing ensures every unit meets our high standards.
Quality Control: Final inspection and certification before shipment.
Quality Inspection
Quality is paramount at Shaanxi Tianyi. Each product is subjected to comprehensive inspections throughout the production process, including:
Material Testing: Ensuring raw materials meet our stringent specifications.
Functional Testing: Evaluating performance metrics to confirm compliance with operational standards.
Final Quality Assurance: A thorough assessment before shipment to guarantee customer satisfaction.
Packaging Method
To ensure safe delivery, our packaging methods include:
Custom Foam Inserts: Protect the electrolyzer during transport.
Weather-Resistant Packaging: Ensures durability against environmental factors.
Labeling for Handling: Clear instructions to minimize risk during shipping.
 |  |  |
Our Certificates
Our Team
 |  |
OEM Service
At Shaanxi Tianyi, we offer OEM services for our Diaphragmless Electrolyzer. Our team collaborates closely with clients to develop tailored solutions that meet specific needs, including custom designs and configurations.
FAQ
Q1: What is the product?
A1: It is an electrolyzer that operates without a diaphragm, enhancing efficiency and reducing energy loss.
Q2: What applications can this electrolyzer be used for?
A2: It is suitable for hydrogen production, water treatment, and various electrochemical processes.
Q3: How does this electrolyzer improve efficiency?
A3: By eliminating the diaphragm, it reduces resistance and energy loss during electrolysis.
Q4: Can the electrolyzer be customized?
A4: Yes, we offer OEM services to tailor the electrolyzer to specific client requirements.
Q5: What safety features does the electrolyzer have?
A5: It includes built-in safety mechanisms for overcurrent and thermal protection.
Contact Us
For more data about our Diaphragmless Electrolyzer or to examine your particular requirements, if it's not too much trouble, reach us at info@di-nol.com.
